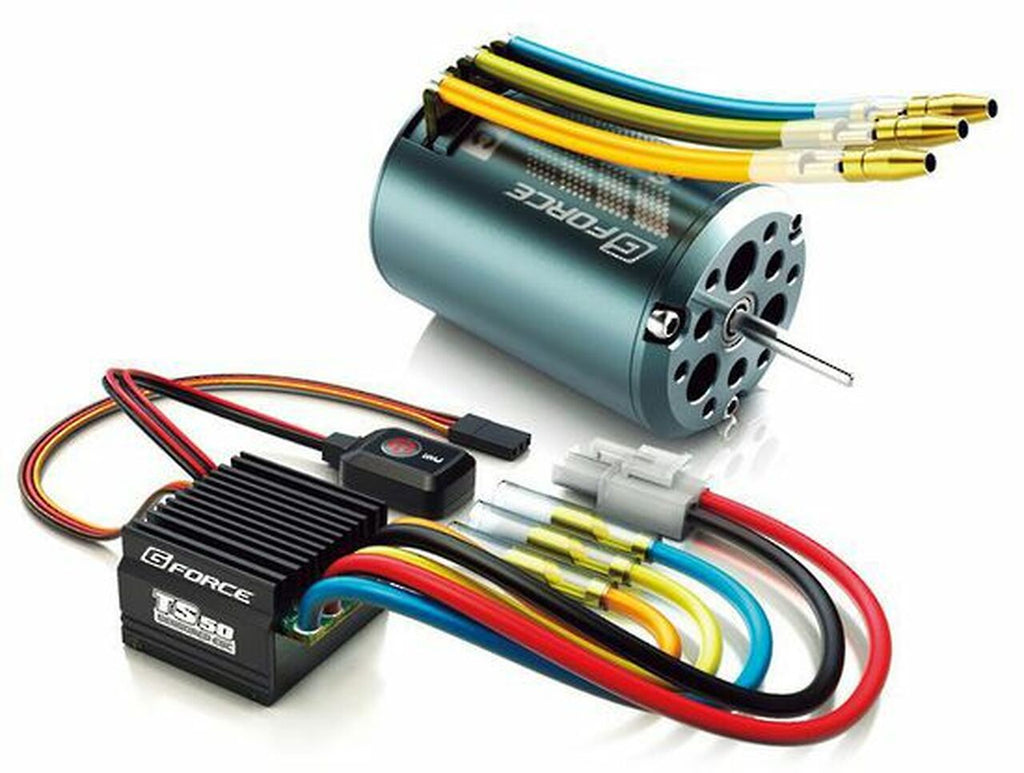

G-FORCE TS50A ESC AND SUPER FAST 17.5T 1870KV BRUSHLESS MOTOR TYPE-C COMBO (g0095)

SKU: 4580416430951

Price:
$200

Tax included

Stock:
In stock

Description

ESC Specification

Constant/Burst Current 50A/300A

Motor Compatible Brushless Sensor & Sensorless ESC

Car Compatible 1/10 Buggy and Touring Car

Motor Limits 4-6S NiMH or 2S LiPo--≥8.5T(1/10 Touring Car), ≥11.5T(1/10 Buggy)

Resistance 0.0006ohm

Battery Cell Count 4-6S NiMH or 2S LiPo

BEC Output 6V@2A

Size 35.3x32.4x19.7mm (LxWxH)

Weight 60g

FAN Optional part

 ESC is locked in "blinky" mode.  This means you can not add timing to the ESC, but makes it NZRCA Legal for all "blinky" classes



Motor Specification

CNC Machined Billet T6 Aluminum Can

High Power Solder Tabs

Removable/Replaceable Rotor

Powerful Sintered Neodymium Magnet

Non Adjustable Timing

Compatible with any Sensored/ Sensorless ESC

Turns Rotor (mm) KV (RPM/VCLT) Internal Resistance Voltage Watts (W)

13.5T 12.5*5(mm) 2760 0.0331Ω 11.1V 190

17.5T 12.5*5(mm) 1870 0.0514Ω 11.1V 130
